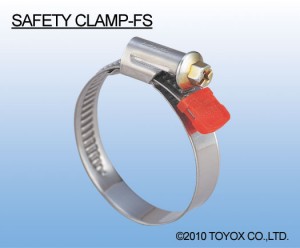

部分不锈钢材质胶管夹FS型 (SAFETY CLAMP-FS)
|
|
用途 |
各种胶管装配用胶管夹 |
| 材质 |
胶管夹：不锈钢SUS430
壳体：不锈钢SUS430
螺钉：铁（镀锌）
安全盖：PE |
| 规格 |
|
| |
|
胶管夹の特徴
| 【安全】 |
可使用十字螺丝刀，不易打滑所以十分安全。 |
| 【提高作业效率】 |
只要轻轻的扭转，就能有很好的密封性。 |
胶管夹规格表
| 型号 |
工作
范围 |
适用胶管尺寸(内径 mm) |
最大紧固扭矩 |
内含数量 |
包装单位 |
外径
(mm) |
TOYORON |
TOYO
SPRING |
ARROW |
HIT
RUN |
抽吸 |
送排水 |
N?m |
(个) |
(个) |
| FS-12 |
8～12 |
4?6 |
6 |
|
|
|
|
3.5 |
10 |
100 |
| FS-15 |
10～15 |
8?9 |
8?9 |
6.5?8 |
8.3 |
|
|
3.5 |
10 |
100 |
| FS-17 |
11～17 |
9?10 |
9 |
8?9.5 |
11 |
|
|
3.5 |
10 |
100 |
| FS-20 |
13～20 |
12 |
12 |
|
13.7 |
|
|
3.5 |
10 |
100 |
| FS-22 |
16～22 |
15 |
15 |
13 |
13.7 |
|
|
3.5 |
10 |
100 |
| FS-25 |
18～25 |
15 |
15 |
|
|
19 |
|
5.0 |
10 |
100 |
| FS-30 |
22～30 |
19?21.5 |
19 |
|
|
|
|
5.0 |
10 |
100 |
| FS-35 |
25～35 |
25 |
25 |
|
|
25 |
|
5.0 |
10 |
100 |
| FS-40 |
27～40 |
|
|
|
|
32 |
|
5.0 |
10 |
50 |
| FS-45 |
30～45 |
32 |
32 |
|
|
|
40 |
5.0 |
10 |
50 |
| FS-50 |
35～50 |
38 |
38 |
|
|
38 |
|
5.0 |
10 |
50 |
| FS-55 |
40～55 |
|
|
|
|
|
50 |
6.0 |
10 |
50 |
| FS-60 |
45～60 |
45 |
|
|
|
|
|
6.0 |
10 |
50 |
| FS-70 |
55～70 |
50 |
50 |
|
|
50 |
65 |
6.0 |
10 |
50 |
| FS-80 |
60～80 |
63 |
63 |
|
|
65 |
75 |
6.0 |
10 |
20 |
| FS-90 |
70～90 |
63 |
63 |
|
|
|
|
6.0 |
10 |
20 |
| FS-100 |
85～100 |
75 |
75 |
|
|
75 |
|
6.0 |
10 |
20 |
| FS-110 |
95～110 |
|
90 |
|
|
90 |
100 |
7.0 |
10 |
20 |
| FS-120 |
105～120 |
|
100 |
|
|
100 |
|
7.0 |
10 |
20 |
| FS-140 |
110～140 |
|
|
|
|
|
125 |
7.0 |
10 |
20 |
| FS-150 |
120～150 |
|
|
|
|
125 |
|
7.0 |
10 |
20 |
| FS-165 |
135～165 |
|
|
|
|
|
150 |
7.0 |
10 |
20 |
| FS-190 |
160～190 |
|
|
|
|
150 |
|
7.0 |
10 |
20 |
| FS-215 |
185～215 |
|
|
|
|
|
200 |
7.0 |
10 |
20 |
| FS-240 |
210～240 |
|
|
|
|
200 |
|
7.0 |
10 |
20 |
| FS-270 |
240～270 |
|
|
|
|
|
250 |
7.0 |
10 |
20 |
| FS-290 |
260～290 |
|
|
|
|
|
|
7.0 |
10 |
20 |
| FS-320 |
290～320 |
|
|
|
|
|
300 |
7.0 |
10 |
20 |
* 胶管夹宽度：FS-12～FS-22为9mm，FS-25～FS-320为12mm
